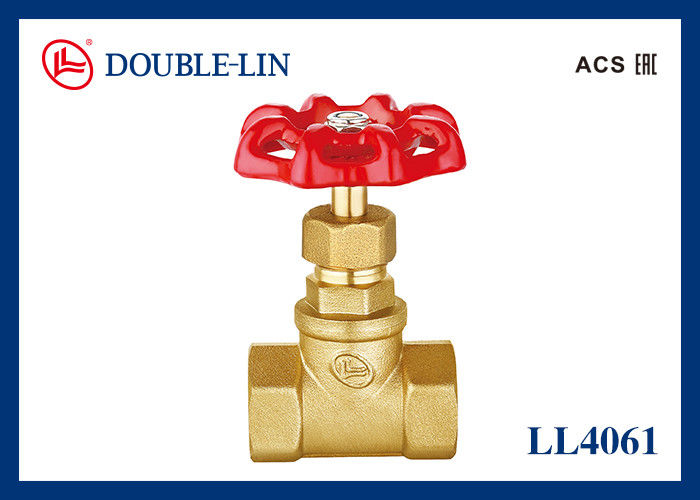

PTFE Filler Female X Female 16 Bar 2" Brass Gate Valve
Product Details:
Place of Origin: | China |
Brand Name: | DOUBLE-LIN |
Certification: | ACS, EAC |
Model Number: | LL4061 |
Payment & Shipping Terms:
Minimum Order Quantity: | 0 |
---|---|
Price: | 0 |
Packaging Details: | Double-Lin standard packing |
Delivery Time: | within 7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 pcs |
Detail Information |
|||
Item: | Brass Stop Valve | Size: | 1/2" - 2" |
---|---|---|---|
Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
Handle Material: | Cast-iron Handle | Filler Material: | PTFE |
Nut: | Stainless Steel | Working Pressure: | 16 Bar(232 Psi) |
Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
High Light: | EAC 2" brass gate valve,ACS 2" Brass Gate Valve,232 psi 2" stop valve |
Product Description
1/2 " To 2 " 16 Bar Brass Stop Valve With Cast-iron Handle
- Description
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
- Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Bonnet: Made of brass material in good quality to ensure wall thickness and is quite durable.
Brass Valve Spool: Adapt soft seal, PTFE seat with good sealing performance, can be suitable for different environments.
Filler: Made of PTFE in good quality, with excellent sealing performance to prevent leakage.
Hexagaonal Nut: Made of brass material in good quality, with strong tensile strength, good toughness and without deformation and cracking after long-time use.
Handle: Made of cast iron in good quality by casting, surface painting, not easy to oxidize and rot. Novel apperance and confortable using feeling.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
- Technical Specification
- Full flow Female x Female brass stop valves with cast-iron handle.
- The thread, color of handle, materials, etc. can be customized.
Dimension mm | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
A | 53 | 53 | 59 | 70 | 80 | 95 |
B | 11 | 13 | 15.5 | 16 | 17 | 20 |
H | 67 | 71 | 79 | 85 | 95 | 105 |
L | 46 | 54 | 66 | 74 | 84 | 97 |
DN | 11 | 14 | 18 | 25 | 34 | 42 |
Materials of Parts
No. | Part | Materials |
1 | Body | Brass |
2 | Filler | PTFE |
3 | Bonnet | Brass |
4 | Lock Cap | Brass |
5 | Spool | Brass |
6 | Handle | Cast-iron |
7 | Nut | Stainless Steel |
- Certificates of LL4061
- Company Profiles
Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.
- Our Package Details
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on nameplate.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate.
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.
- FAQ
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
