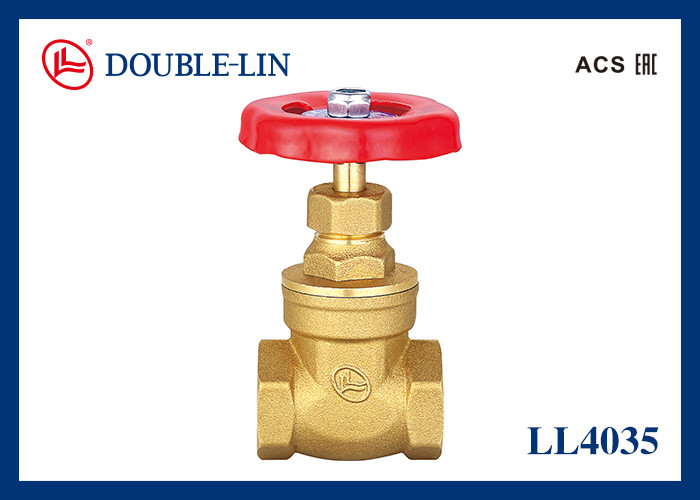

Brass Gate Valve 1/2"-4" Steel Handle Female x Female 16 Bar Working Pressure
Product Details:
| Place of Origin: | China |
| Brand Name: | DOUBLE-LIN |
| Certification: | EAC, ACS |
| Model Number: | LL4035 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 0 |
|---|---|
| Price: | 0 |
| Packaging Details: | Double-Lin standard packing |
| Delivery Time: | within 7 days |
| Payment Terms: | L/C,T/T,D/A,D/P,Western Union,MoneyGram |
| Supply Ability: | 50000 |
|
Detail Information |
|||
| Item: | Brass Gate Valve | Size: | 1/2" - 4" |
|---|---|---|---|
| Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
| Handle Material: | Steel Handle | Filler Material: | PTFE |
| Nut: | Stainless Steel | Working Pressure: | 16 Bar(232 Psi) |
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
| Highlight: | 1/2 inch brass gate valve female,4 inch brass gate valve 16 bar,female x female brass gate valve |
||
Product Description
Brass Gate Valve 1/2"-4" Steel Handle Female x Female 16 Bar Working Pressure
1/2" To 4" 16 Bar Brass Gate Valve With Steel Handle
Description
- Working Pressure: 16bar (232 psi)
- Working Temperature: from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
- Thread: ISO228 (equivalent to DIN 259 and BS2779)
Details
- Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
- Brass Bonnet: Made of brass material in good quality to ensure wall thickness and durability.
- Brass Valve Spool: Adapts soft seal, PTFE seat with good sealing performance, suitable for different environments.
- Filler: Made of PTFE with excellent sealing performance to prevent leakage.
- Hexagonal Nut: Made of stainless steel with strong tensile strength, good toughness and resistance to deformation.
- Handle: Made of quality steel with surface painting, resistant to oxidation and rot. Comfortable grip and novel appearance.
- Stainless Steel Locknut: Internal anti-loose design for long-term use.
Technical Specification
Materials of Parts
| No. | Part | Materials |
|---|---|---|
| 1 | Body | Brass |
| 2 | Filler | PTFE |
| 3 | Bonnet | Brass |
| 4 | Lock Cap | Brass |
| 5 | Spool | Brass |
| 6 | Handle | Steel |
| 7 | Nut | Stainless Steel |
Certificates of LL4035
Company Profiles
Double-Lin, established in 2000 in China, is a manufacturing company serving global markets. Our self-owned brand products are distributed to over 100 countries and regions, including the Chinese domestic market. Under Chairman Mr. Lin Hailin's leadership, we've evolved into a comprehensive solution provider across four major areas:
- Public buildings and household water control systems
- Public buildings and home heating systems
- Transportation and gas safety systems
- Family bathroom hardware solutions
We offer nearly 10,000 product varieties and specifications.
Our Package Details
- Double-Lin logo forged in valve body
- Double-Lin logo stamped or printed on nameplate
- 3-layer corrugated bond paper inner box with clear printing
- Product guarantee certificate included
- PE plastic ECO bag
- Product specification label on master carton side
- Double-Lin special packing tape
- 5-layer corrugated bond paper master carton
- 2 non-woven bags included
- Instruction manual included
FAQ
Q: How long is your product guarantee period?
A: We offer a three-year guarantee with 24-hour full-time service.
Q: What is your MOQ?
A: No minimum order quantity. Our large warehouse enables "Instant Order, Immediate Delivery" with no MOQ requirements.
Q: Can you accept OEM?
A: As a company with our own brand that we're promoting globally, we do not accept OEM requests.
Q: How long is your delivery time?
A: For in-stock items, immediate shipment. Mass production orders typically ship within 30-35 days.
