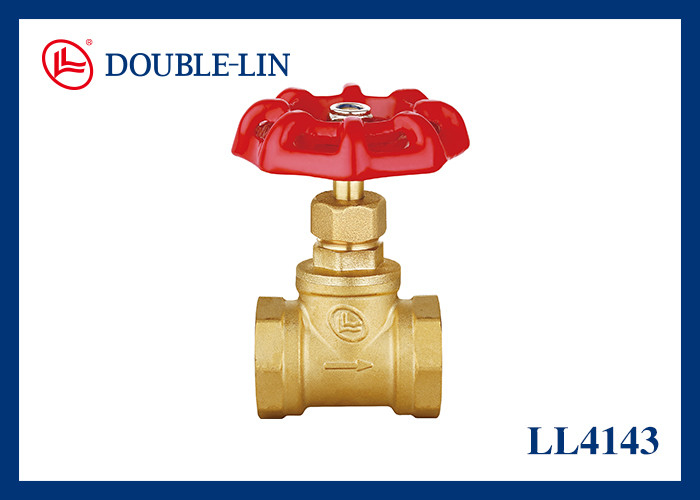

Cast-iron Handle Brass Stop Valve 1/2"-2" Female x Female 16 Bar Working Pressure PTFE Sealing
Product Details:
| Place of Origin: | China |
| Brand Name: | DOUBLE-LIN |
| Model Number: | LL4143 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 0 |
|---|---|
| Price: | 0 |
| Packaging Details: | Double-Lin standard packing |
| Delivery Time: | within 7 days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 50000 pcs |
|
Detail Information |
|||
| Item: | Brass Stop Valve | Size: | 1/2" - 2" |
|---|---|---|---|
| Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
| Handle Material: | Cast-Iron Handle | Sealing Material: | PTFE |
| Nut: | Stainless Steel | Working Pressure: | 16 Bar(232 Psi) |
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
| Highlight: | Brass stop valve female x female,1/2 inch brass stop valve,Brass gate valve 16 bar |
||
Product Description
Cast-iron Handle Brass Stop Valve 1/2"-2" Female x Female 16 Bar Working Pressure PTFE Sealing
Product Description
- Working Pressure: 16bar (232 psi)
- Working Temperature: from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
- Thread: ISO228 (equivalent to DIN 259 and BS2779)
Product Details
- Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
- Brass Bonnet: Made of brass material in good quality to ensure wall thickness and durability.
- Brass Valve Spool: Adapts soft seal, PTFE seat with good sealing performance, suitable for different environments.
- Filler: Made of PTFE with excellent sealing performance to prevent leakage.
- Hexagonal Nut: Made of stainless steel with strong tensile strength, good toughness and resistant to deformation.
- Handle: Made of quality steel with surface painting, resistant to oxidation and rot. Comfortable grip.
- Stainless Steel Locknut: Internal anti-loose design for long-term use.
Technical Specification
Materials of Parts
| No. | Part | Materials |
|---|---|---|
| 1 | Body | Brass |
| 2 | Filler | PTFE |
| 3 | Bonnet | Brass |
| 4 | Lock Cap | Brass |
| 5 | Spool | Brass |
| 6 | Handle | Iron |
| 7 | Nut | Stainless Steel |
Company Profile
Double-Lin, established in 2000 in China, is a manufacturing company serving global markets. With self-owned brand products distributed to over 100 countries and regions, Double-Lin offers comprehensive solutions including:
- Public buildings and household water control systems
- Public buildings and home heating systems
- Transportation and gas safety systems
- Family bathroom hardware solutions
The company offers nearly 10,000 kinds of products and specifications.
Package Details
- Double-Lin logo forged in valve body
- Double-Lin logo stamped or printed on nameplate
- 3-layer corrugated bond paper inner box with clear printing
- Product guarantee certificate included
- PE plastic ECO bag
- Product spec label on master carton
- Double-Lin special packing tape
- 5-layer corrugated bond paper master carton
- 2 non-woven bags included
- Instruction manual included
Frequently Asked Questions
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand worldwide, so we do not accept OEM.
Q: How long is your delivery time?
A: For items in stock, we can ship immediately. For mass production, delivery time is 30-35 days.
