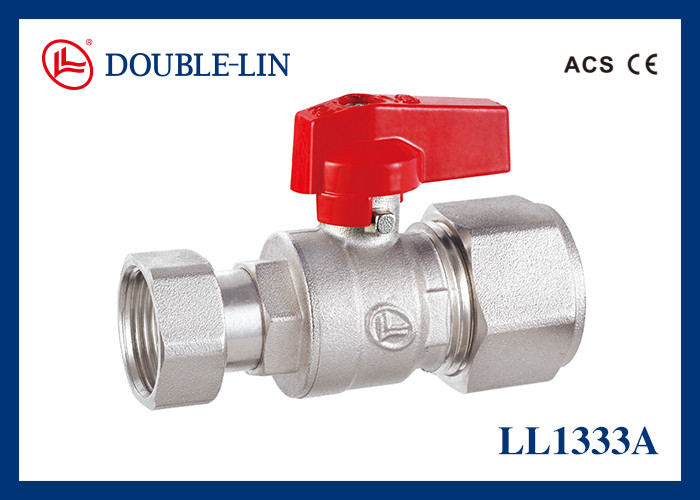

• F3/4'' PEX-AL-PEX- Multi Layer Pipe Ball Valve With Alu Handle
F3/4'' PEX-AL-PEX- Multi Layer Pipe Ball Valve With Alu Handle

F3/4'' PEX-AL-PEX- Multi Layer Pipe Ball Valve With Alu Handle

Product Details:

Place of Origin: China
Brand Name: Double-Lin
Certification: CE ACS
Model Number: LL1333

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

ITEM:: Brass Ball Valve SIZE:: M3/4''*25-2.5
BRASS MATERIAL:: HPB 57-3 CONNECTION TYPE:: Pipe Connection
HANDLE MATERIAL:: Aluminium Alloy HANDLE TYPE:: Aluminium Handle
WORKING PRESSURE:: 16 Bar(232Psi) THREAD:: ISO228 (equivalent To DIN 259 And BS2779)
WORKING TEMPERATURE:: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
High Light:

Multi Layer Brass Ball Valves

,

Alu Handle Pipe Ball Valve

,

Pipe Connection Brass Ball Valves

Product Description

  • F3/4'' PEX-AL-PEX- Multi-Layer Pipe Ball Valve For Water Tank
  • Description

​Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Aluminium Handle, professional surface painting, wear resisting, anti-corrosion. Small appearance, flexible in open and close.

O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.



  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details









1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.

  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
