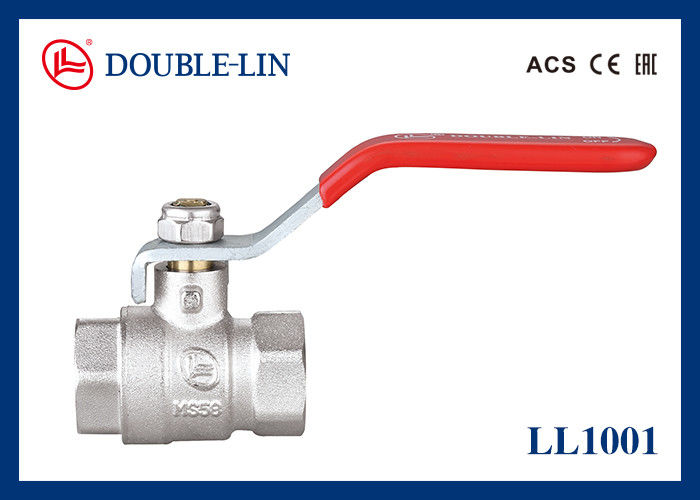

HPB 57-3 25 Bar Brass Ball Valves With Lever Handle

HPB 57-3 25 Bar Brass Ball Valves With Lever Handle

  • HPB 57-3 25 Bar Brass Ball Valves With Lever Handle
  • HPB 57-3 25 Bar Brass Ball Valves With Lever Handle
HPB 57-3 25 Bar Brass Ball Valves With Lever Handle
Product Details:
Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: ACS,CE EAC
Model Number: LL1001
Payment & Shipping Terms:
Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Contact Now
Detailed Product Description
Item: 25 Bar Brass Ball Valves Size: 1/4 Inch - 4 Inch
Brass Material: HPB 57-3 Connection Type: Female X Female
Handle Material: Iron Or Steel Handle Type: Lever
Stem Material: Brass Body Seal Material: PTFE
Working Pressure: 25 Bar(362.5 Psi) Opening/closing Test: 10,000 Times
Thread: ISO228 (equivalent To DIN 259 And BS2779)
High Light:

25 Bar Brass Ball Valves

,

HPB 57-3 Brass Ball Valves

,

HPB 57-3 push fit ball valve

HPB 57-3 25 Bar Brass Ball Valves With Lever Handle

  • Description

brass body, iron ball, iron stem
full port, female thread

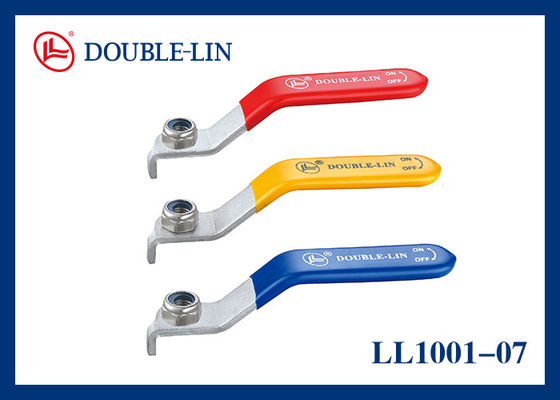

multi color steel handle

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Plated with dacromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.

O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.



  • Technical Specification

HPB 57-3 25 Bar Brass Ball Valves With Lever Handle 0





  1. Full flow female x Female brass ball valves with Iron flat lever handle.
  2. The thread, color of handle, materials, etc. can be customized.



Dimension mm

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"

A

40 41 48.4 56 65 76 85 99 132 152 178
B 23 23 29.5 35.5 42.7 53 63 79 102.5 120.5 144.5
C 39.2 39.8 54.2 57.6 60.6 75.8 81.3 88.5 121.5 129.5 141
D 87 87 95 95 126 140 140 165 224 224 283.5
E 9 10 14.8 19 24 30.2 37 47 62 74 90
PN 25 25 25 25 25 25 25

25

25 25 25



Materials of Parts



No. Part Materials
1 Body Brass
2

Bonnet

Brass
3 Ball Brass
4 Seal PTFE
5 Stem Brass
6 O ring NBR
7 O ring Fluorubber
8 Handle Iron or steel
9 Nut Stainless Steel



Reminding: Ball valves in red handle can be only used in water services, heating and air conditioning plants, and compression air system. They are not allowed to be used in gas system.



  • Certificates of LL1001

HPB 57-3 25 Bar Brass Ball Valves With Lever Handle 1HPB 57-3 25 Bar Brass Ball Valves With Lever Handle 2HPB 57-3 25 Bar Brass Ball Valves With Lever Handle 3



  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • FAQ

Q: How long is your product guarantee period?

A: We have three-year guarantee and 24 hours full-time service.



Q: What is your MOQ?

A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



Q: Can you accept OEM?

A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.



Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
