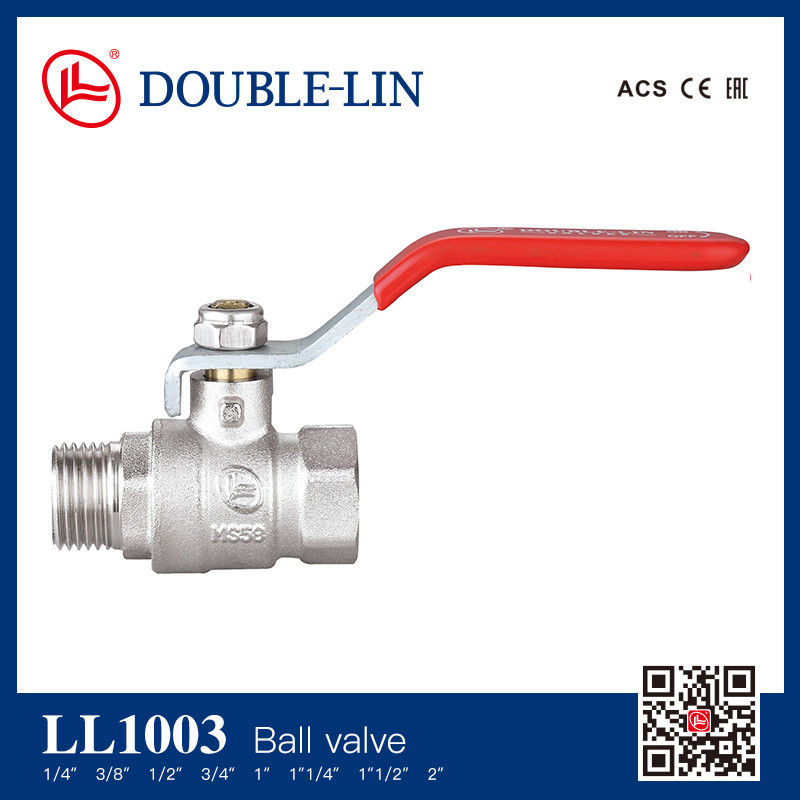

362.5 psi 2 Inch Brass Push Fit Ball Valve Double O Ring Stem
Product Details:
| Place of Origin: | China |
| Brand Name: | DOUBLE-LIN |
| Certification: | ACS,CE,EAC |
| Model Number: | LL1003 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 0 |
|---|---|
| Price: | 0 |
| Packaging Details: | Double-Lin standard packing |
| Delivery Time: | within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pcs |
|
Detail Information |
|||
| Item: | Brass Push Fit Ball Valve | Size: | 1/4" - 2" |
|---|---|---|---|
| Brass Material: | HPB 57-3 | Connection Type: | Male X Female |
| Handle Material: | Iron Or Steel | Handle Type: | Lever |
| Stem Type: | Double O-ring | Stem Material: | Brass |
| Seat Material: | PTFE | Body Seal Material: | PTFE |
| Working Pressure: | 25 Bar(362.5 Psi) | Opening/closing Test: | 10,000 Times |
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
| High Light: | 362.5 Psi Push Fit Ball Valve,Brass Push Fit Ball Valve,362.5 Psi Brass Ball Valves |
||
Product Description
362.5 Psi 2 Inch Bruss Push Fit Ball Valve Double O Ring Stem
- Push Fit Ball Valve Description
Working Pressure 25 bar (362.5 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times
- Push Fit Ball Valve Technical Specification
- Full flow Male x Female brass ball valves with Iron flat lever handle.
- The thread, color of handle, materials, etc. can be customized.
|
Dimension mm |
1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
|
A |
48.5 | 50 | 57.5 | 63.8 | 74.5 | 87 | 98 | 113.5 |
| B | 23 | 23 | 29.5 | 35 | 42.7 | 53 | 63 | 79 |
| C | 39.2 | 39.8 | 54.2 | 57.6 | 60.6 | 75.8 | 81.3 | 88.5 |
| D | 87 | 87 | 95 | 95 | 126 | 140 | 140 | 165 |
| E | 9 | 10 | 14.8 | 19 | 24 | 30.2 | 37 | 47 |
| PN | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
25 |
Materials of Parts
| No. | Part | Materials |
| 1 | Body | Brass |
| 2 |
Bonnet |
Brass |
| 3 | Ball | Brass |
| 4 | Seal | PTFE |
| 5 | Stem | Brass |
| 6 | O ring | NBR |
| 7 | O ring | Fluorubber |
| 8 | Handle | Iron or steel |
| 9 | Nut | Stainless Steel |
Reminding: Ball valves in red handle can be only used in water services, heating and air conditioning plants, and compression air system. They are not allowed to be used in gas system.
- Certificates of LL1003
- Company Profiles
Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.
- Our Package Details
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.
