• 16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle
16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle

16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: ACS,EAC
Model Number: LL2067

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Stop Hose Bibcock Size: F1/2"XM3/4"
Brass Material: HPB 57-3 Handle Material: Brass
Stem Type: Slow Open Cartridge Stem Material: Brass
Body Seal Material: EPDM Working Pressure: 16 Bar(232 Psi)
Opening/closing Test: 10,000 Times Thread: ISO228 (equivalent To DIN 259 And BS2779)
Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉) Water Outlet: Brass
High Light:

F1/2" X M3/4" Stopcock Tap

,

16 Bar Stopcock Tap

,

Brass Handle water stop tap

Product Description

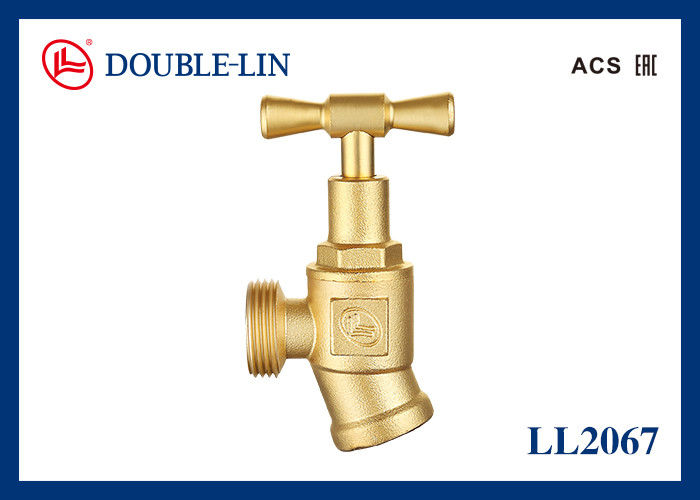

Brass Handle Slow Open 16 Bar F1/2" x M3/4" Stopcock Tap

  • Description

​Working Pressure   16bar (232 psi)
Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Detail

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Professional surface: Polishing chrome plating, grade 9 electroplating standard.The surface is as smooth as a mirror.

valve stem: Processed by hot-rolled copper bar, which has strong hardness and can effectively prevent deformation and fracture when the valve is switched.

Spool: Made of high grade brass with smooth surface and good sealing performance.

Handle: The handle is well designed, ergonomic, good to hold and easy to open.

Seal ring: Imported EPDM seal ring and spool double seal prevent leakage





 Technical Features
16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 0
 16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 1

Materials of Parts


No. Part Materials
1 Body Brass
3 Ball Brass
4 Seal EPDM
5 Spool Brass
6 Stem Brass
7 Handle Brass



  • Certificates of LL2067

16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 216 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 316 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 4

  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 5
16 Bar F1/2" X M3/4" Stopcock Tap Brass Handle 6
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
