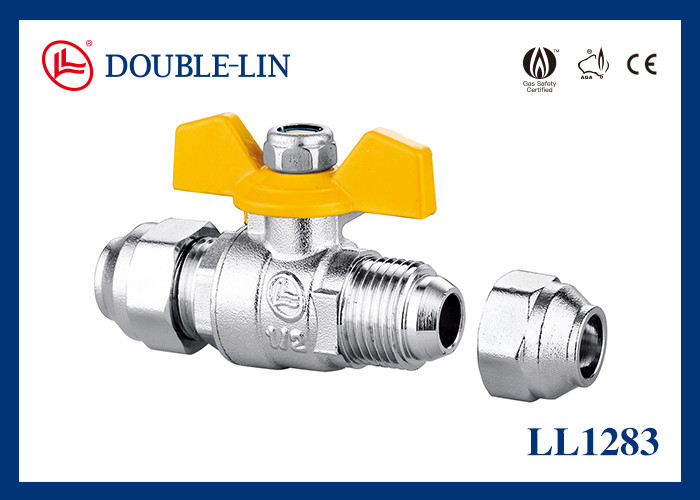

• Chrome Plated 26Bar DIN259 T Handle Gas Valve
Chrome Plated 26Bar DIN259 T Handle Gas Valve

Chrome Plated 26Bar DIN259 T Handle Gas Valve

Product Details:

Place of Origin: China
Brand Name: Double-Lin
Certification: CE,EAC
Model Number: LL1283

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50,000 pcs
Get Best Price Contact Now

Detail Information

Item: Gas Ball Valve Size: 1/2"-3/4"
Brass Material: Hpb 57-3 Handle Material: Aluminium
Handle Type: T/Butterfly Stem Type: Double O-ring
Stem Material: Brass Seal Material: PTFE
Working Pressure: 26bar (377 Psi) Opening/closing Test: 10,000 Times
Thread: ISO228(equivalent To DIN259 And BS2779) Working Temperature: -10 ℃+80 ℃ (14℉-176℉)
Color: Chrome Plated
High Light:

DIN259 T Handle Gas Valve

,

26Bar T Handle Gas Valve

,

DIN259 t handle ball valve

Product Description

Chrome plated 26Bar DIN259 T Handle Gas Valve



Description


Working Pressure 5bar (72.5 psi)

Working Temperature from -10 ℃ to +80 ℃ (from 14℉ to 176℉)

Thread ISO228(equivalent to DIN259 and BS2779)

Opening/closing Test 10,000 times





Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: The butterfly handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.



Technical Specification



Chrome Plated 26Bar DIN259 T Handle Gas Valve 0

Chrome Plated 26Bar DIN259 T Handle Gas Valve 1


Materials of Parts



No. Part Materials
1 Body Brass
2 Bonnet Brass
3 Ball Brass
4 Seal PTFE
5 Stem Brass
6 O ring NBR
7 Handle Aluminium
8 Nut Stainless Steel



Reminding: Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.



Certificates of LL1522





Chrome Plated 26Bar DIN259 T Handle Gas Valve 2



Company Profiles



Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



Our Package Details



Chrome Plated 26Bar DIN259 T Handle Gas Valve 3

Chrome Plated 26Bar DIN259 T Handle Gas Valve 4

1. Double-Lin logo forged in valve body.

2. Double-Lin logo stamped or printed on handle.

3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

4. Product guarantee certificate

5. PE plastic ECO bag.

6. Product spec. label sticked on the side of master carton.

7. Double-Lin special packing tape.

8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.

9. 2pcs of non-woven bags inside.

10. 1 copy of instruction manual inside.





FAQ



Q: How long is your product guarantee period?

A: We have three-year guarantee and 24 hours full-time service.



Q: What is your MOQ?

A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



Q: Can you accept OEM?

A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.



Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
