• Polished Chromed Plated 1/2" x 3/8" Brass Angle Valves

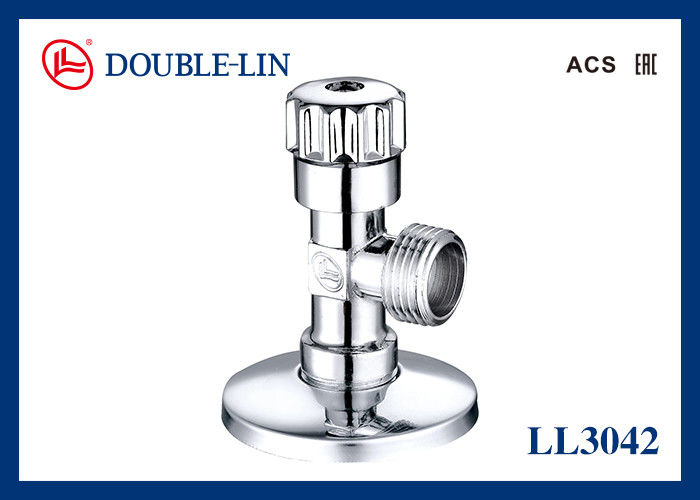

Polished Chromed Plated 1/2" x 3/8" Brass Angle Valves

Polished Chromed Plated 1/2" x 3/8" Brass Angle Valves

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Model Number: LL3042

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Angle Valve Size: 1/2" * 1/2" , 1/2" * 3/8"
Brass Material: HPB 57-3 Handle Material: ABS
Stem Material: Brass Seat Material: NBR
Working Pressure: 10 Bar( 145 Psi ) Thread: ISO228 (equivalent To DIN 259 And BS2779)
Working Temperature: From 0 ℃ To +80 ℃ (from 32℉ To 176℉)
High Light:

145 psi Brass Angle Valves

,

1/2"x3/8" Brass Angle Valves

,

BS2779 polished brass angle stop

Product Description

10 Bar Brass Angle Valve Polished Chromed-Plated With ABS Handle / Single Way Brass Angle Valve





​Working Pressure   10bar (145 psi)
Working Temperature  from 0 ℃ to +80 ℃ (from 32℉ to 176℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)


  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Surface: Professionally polished and chrome plated, with nine-level electroplating standards. The surface is as smooth as a mirror, and can be used for long time.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Internal: High-precision machining, smooth and non-scalling, is not easy to block, and make the service life longer.

Water Inlet: High-precision thread processing, perfect docking with water inlet pipe, silky smooth.

Cover: Made of stainless steel, antirust, long-term use of the suface is still as new.



  • Technical Specification


Polished Chromed Plated 1/2" x 3/8" Brass Angle Valves 0




DIMENSION IN mms 1/2" *3/8" 1/2" * 1/2"

A

87.5 87.5
B 7 7
C 47 47
DN 10 10


Materials of Parts


No. Part Materials
1 Body Brass
2

Bonnet

Brass
3 Stem Brass
4 Seal Brass
5 Seal Gasket NBR
6 Connector Plastic
7 Handle Wheel ABS
8 Cover Stainless Steel 304







  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

Polished Chromed Plated 1/2" x 3/8" Brass Angle Valves 1
Polished Chromed Plated 1/2" x 3/8" Brass Angle Valves 2
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
