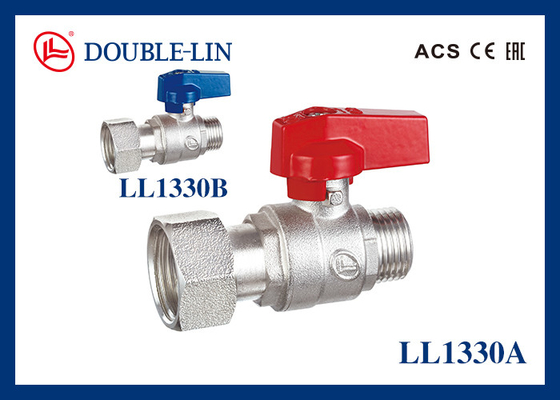

Aluminium Handle Water HPB 57-3 Boiler Ball Valve

Aluminium Handle Water HPB 57-3 Boiler Ball Valve

    • Aluminium Handle Water HPB 57-3 Boiler Ball Valve
  • Aluminium Handle Water HPB 57-3 Boiler Ball Valve

    Product Details:

    Place of Origin: China
    Brand Name: Double-Lin
    Certification: CE;ACS
    Model Number: LL1330A

    Payment & Shipping Terms:

    Minimum Order Quantity: 0
    Price: 0
    Packaging Details: Double-Lin standard packing
    Delivery Time: within 7 days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 50,000 pcs
    Contact Now
    Detailed Product Description
    Item: Bolier Ball Valve For Water Size: F1/2" X M1/2";F3/4" X M3/4";F1" X M3/4"
    Brass Material: Hpb 57-3 Handle Material: Aluminium
    Handle Type: Aluminium Stem Type: Double O-ring
    Stem Material: Brass Seal Material: PTFE
    Working Pressure: 16 Bar (232 Psi) Opening/closing Test: 10,000 Times
    Thread: ISO228(equivalent To DIN259 And BS2779) Working Temperature: -10 ℃-120 ℃ (14℉-248℉)
    High Light:

    HPB 57-3 boiler ball valve

    ,

    ISO228 boiler ball valve

    ,

    HPB 57-3 boiler drain ball valve

    F1/2" x M1/2";F3/4" x M3/4";F1" x M3/4" Boiler Ball Valve For Water


    Description

    Working Pressure 16bar(232 psi)
    Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
    Thread ISO228(equivalent to DIN259 and BS2779)
    Opening/closing Test 10,000 times


    Details

    ​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Valve Ball: Smooth and wear resisting, with good sealing performance.

    Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

    Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

    Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

    O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

    Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.



    Technical Specification



    Aluminium Handle Water HPB 57-3 Boiler Ball Valve 0





    1. Male x Removing Female Nut brass bolier ball valve with Aluminium handle.
    2. The thread, color of handle, materials, etc. can be customized.
    size
    1/2" x1/2"
    3/4" x3/4"
    1" x3/4"
    A
    G1/2"
    G3/4"
    G3/4"
    A1
    G1/2"
    G3/4"
    G1"
    B
    67.2
    76.5
    77


    Materials of Parts


    No. Part Materials
    1 Body Brass
    2 Bonnet Brass
    3 Ball Brass
    4 Seal PTFE
    5 Stem Brass
    6 O ring NBR
    7 Handle Aluminium
    8 Nut Stainless Steel




    Certificates of LL1330A
    Aluminium Handle Water HPB 57-3 Boiler Ball Valve 1Aluminium Handle Water HPB 57-3 Boiler Ball Valve 2


    Company Profiles


    Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.


    Our Package Details

    Aluminium Handle Water HPB 57-3 Boiler Ball Valve 3
    Aluminium Handle Water HPB 57-3 Boiler Ball Valve 4
    1. Double-Lin logo forged in valve body.
    2. Double-Lin logo stamped or printed on handle.
    3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
    4. Product guarantee certificate
    5. PE plastic ECO bag.
    6. Product spec. label sticked on the side of master carton.
    7. Double-Lin special packing tape.
    8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
    9. 2pcs of non-woven bags inside.
    10. 1 copy of instruction manual inside.


    FAQ

    Q: How long is your product guarantee period?
    A: We have three-year guarantee and 24 hours full-time service.

    Q: What is your MOQ?
    A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

    Q: Can you accept OEM?
    A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

    Q: How long is your delivery time?

    A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
