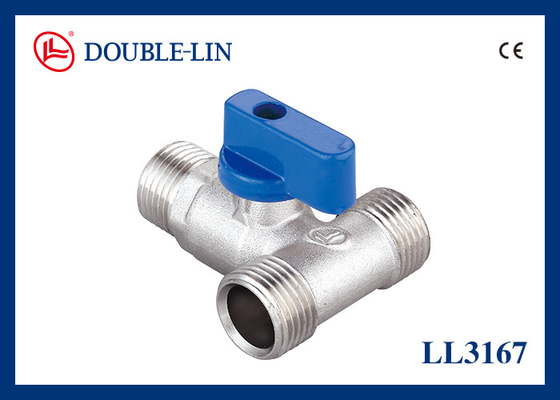

3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve

3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve

    • 3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve
  • 3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve

    Product Details:

    Place of Origin: China
    Brand Name: Double-Lin
    Certification: CE,ACS,EAC
    Model Number: LL3167

    Payment & Shipping Terms:

    Minimum Order Quantity: 0
    Price: 0
    Packaging Details: Double-Lin standard packing
    Delivery Time: within 7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50000 pcs
    Contact Now
    Detailed Product Description
    Item: Brass Ball Valve Size: M1/2"*M1/2"*M1/2"
    Brass Material: HPB 57-3 Connection Type: Female*Female*Female
    Handle Material: Aluminum Alloy Handle Type: T Handle
    Stem Type: Double O-ring Stem Material: Brass
    Seat Material: PTFE Body Seal Material: PTFE
    Working Pressure: 25 Bar(362.5 Psi) Opening/closing Test: 10,000 Times
    Thread: ISO228 (equivalent To DIN 259 And BS2779) Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
    High Light:

    25Bar t handle ball valve

    ,

    BS2779 tee handle ball valve

    ,

    25Bar tee handle ball valve

    3 Way Male X Male X Male 25 Bar Brass Ball Valve With T Handle​



    • Description

    ​Working Pressure   25bar (362.5 psi)

    Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)

    Thread ISO228 (equivalent to DIN 259 and BS2779)

    Opening/closing Test 10,000 times

    • Details

    ​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Valve Ball: Smooth and wear resisting, with good sealing performance.

    Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

    Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

    Handle: T handle, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.

    O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.



    • Technical Specification

    3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve 0





    1. 3 Way Male X Male X Male 25 Bar Brass Ball Valve With T Handle​
    2. The thread, color of handle, materials, etc. can be customized.



    Dimension mm

    M1/2"*F1/2"*M1/2"

    A

    G1/2"
    A1 G1/2"
    B 50.5
    C 38
    D 48.5
    PN 25



    Materials of Parts



    No. Part Materials
    1 Body Brass
    2

    Bonnet

    Brass
    3 Ball Brass
    4 Seal PTFE
    5 Stem Brass
    6 O ring NBR
    7 O ring Fluorubber
    8 Handle Aluminum alloy
    9 Nut Stainless Steel



    Reminding: Ball valves in red handle can be only used in water services, heating and air conditioning plants, and compression air system. They are not allowed to be used in gas system.



    • Certificates of LL3167

    3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve 13 Way Male X Male X Male 25 Bar Tee Handle Ball Valve 23 Way Male X Male X Male 25 Bar Tee Handle Ball Valve 3



    • Company Profiles

    Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



    • Our Package Details

    3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve 4

    3 Way Male X Male X Male 25 Bar Tee Handle Ball Valve 5

    1. Double-Lin logo forged in valve body.

    2. Double-Lin logo stamped or printed on handle.

    3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

    4. Product guarantee certificate

    5. PE plastic ECO bag.

    6. Product spec. label sticked on the side of master carton.

    7. Double-Lin special packing tape.

    8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.

    9. 2pcs of non-woven bags inside.

    10. 1 copy of instruction manual inside.





    • FAQ

    Q: How long is your product guarantee period?

    A: We have three-year guarantee and 24 hours full-time service.



    Q: What is your MOQ?

    A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



    Q: Can you accept OEM?

    A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.



    Q: How long is your delivery time?

    A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
