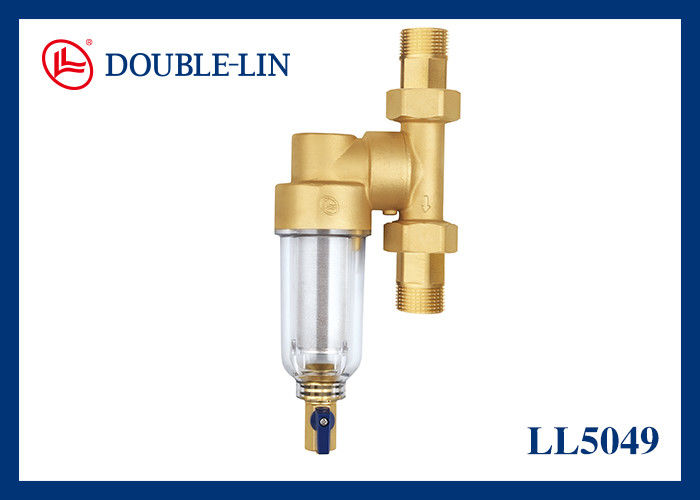

Male X Male 1" Universal Self Cleaning Strainer

Male X Male 1" Universal Self Cleaning Strainer

  • Male X Male 1" Universal Self Cleaning Strainer
Male X Male 1" Universal Self Cleaning Strainer
Product Details:
Place of Origin: China
Brand Name: DOUBLE-LIN
Model Number: LL5049
Payment & Shipping Terms:
Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Contact Now
Detailed Product Description
Item: Brass Universal Self Cleaning Strainer Size: 1"
Brass Material: HPb 57-3 Connection Type: Male X Male
Filter: Stainless Steel Working Pressure: 16 Bar(232 Psi)
Thread: ISO228 (equivalent To DIN 259 And BS2779) Working Temperature: From -10 ℃ To +40 ℃ (from 14℉ To 104℉)
High Light:

ISO228 Self Cleaning Strainer


DIN 259 Self Cleaning Strainer


BS2779 self cleaning filter

1 " 16 Bar Brass Universal Self Cleaning Strainer

  • Description

​Working Pressure   16bar (232 psi)
Working Temperature  from -10 ℃ to +40 ℃ (from 14℉ to 104℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.

Brass Locknut: Made of brass material in good quality, good wall thickness and is durable.

Brass Connection: Made of brass material in good quality. Hexagonal revolving connection, is easy to install and take out. You can choose different sizes of connection according to the sizes of pipes.

Anti-back Flow Device: It can effectively prevent filtered water flow back to the cartridge so that can protect the water meter. The material is engineering plastics, food grade, safe and non-toxic.

Filter: Made of stainless steel, and can be taken out for cleaning after long-term use.

Filter Cartridge: Made of polycarbonate, stable and strong, smooth wall can prevent scaling. The down connection part of cartridge adopts hexagonal design, you can use wrench to take out to clean.

Double O-ring Sealing: Adopt imported EPDM raw material, good sealing performance, long-time to use.

Brass Outlet Ball Valve: Made of brass material in good quality. Hexagonal design, is easy to install and take out.



  • Technical Specification

Male X Male 1" Universal Self Cleaning Strainer 0

  1. Full flow Male x Male brass self cleaning strainer.
  2. The thread, materials, etc. can be customized.


Dimension mm

A 169


C 68
D 1"
E 1/4"
PN 16

Materials of Parts

No. Part Materials
1 Body Brass


3 Connection Brass
4 Filter Cartridge Polycarbonate
5 Filter Stainless Steel
6 O-ring EPDM
7 Outlet Brass


  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.


  • Our Package Details

Male X Male 1" Universal Self Cleaning Strainer 1
Male X Male 1" Universal Self Cleaning Strainer 2
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on nameplate.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate.
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.

  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
