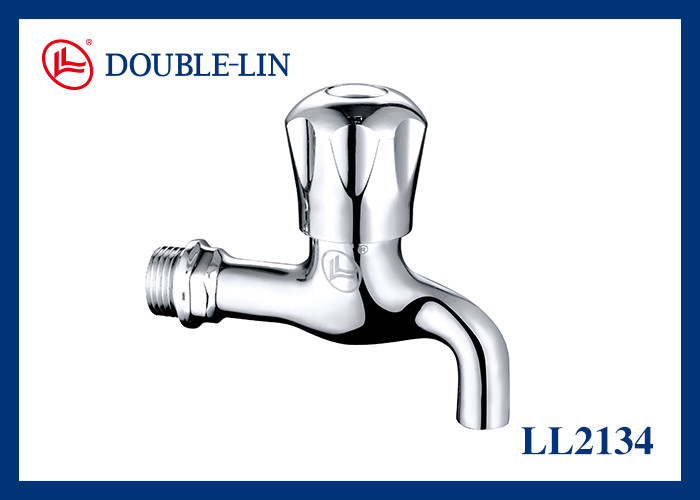

ABS Handle DIN 259 Cold Brass Water Stop Tap
Product Details:
Place of Origin: | China |
Brand Name: | DOUBLE-LIN |
Certification: | ACS,CE |
Model Number: | LL2134 |
Payment & Shipping Terms:
Minimum Order Quantity: | 0 |
---|---|
Price: | 0 |
Packaging Details: | Double-Lin standard packing |
Delivery Time: | within 7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 pcs |
Detail Information |
|||
Item: | Brass Stop Bibcock | Size: | 1/2" |
---|---|---|---|
Brass Material: | HPB 57-3 | Handle Material: | ABS |
Stem Type: | Slow Open Cartridge | Stem Material: | Brass |
Body Seal Material: | EPDM | Working Pressure: | 16 Bar(232 Psi) |
Opening/closing Test: | 10,000 Times | Thread: | ISO228 (equivalent To DIN 259 And BS2779) |
Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) | Water Outlet: | Brass |
High Light: | DIN 259 water stop tap,16bar water stop tap,DIN259 Brass Water Faucet |
Product Description
Simple Cold Brass Water Faucet, Stop Bibcock, Sand-Cast, Polished Chrome-Plated, Slow Open ABS Handle
- Description
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times
- Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Professional surface: Polishing chrome plating, grade 9 electroplating standard.The surface is as smooth as a mirror.
valve stem: Processed by hot-rolled copper bar, which has strong hardness and can effectively prevent deformation and fracture when the valve is switched.
Spool: Made of high grade wear-resistant brass with smooth surface and good sealing performance.
Handle: The handle is well designed, ergonomic, good to hold and easy to open.
Seal ring: Imported EPDM seal ring and spool double seal prevent leakage
Technical Features
SIZE | 1/2" |
A | G1/2" |
B | 11 |
C | 63 |
D | 95 |
E | 99 |
PN | 12 |
Materials of Parts
No. | Part | Materials |
1 | Body | Brass |
3 | Ball | Brass |
4 | Seal | EPDM |
5 | Spool | Brass |
6 | Stem | Brass |
7 | Handle | ACS |
Certificates of LL2134
- Company Profiles
Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.
- Our Package Details
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.
- FAQ
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
