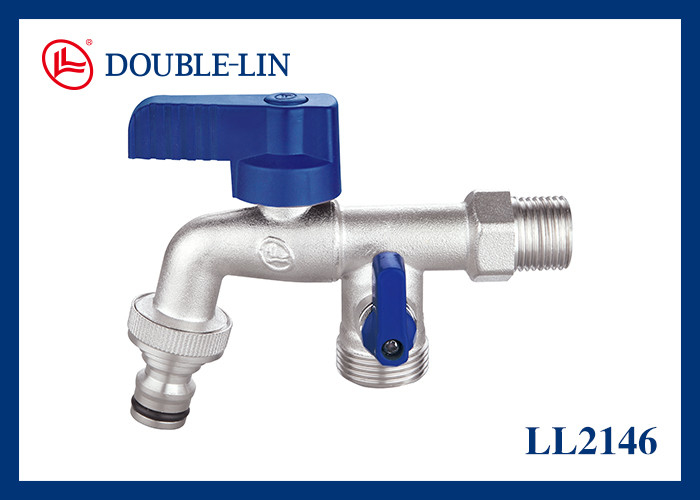

• Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock
Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock

Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: ACS,CE
Model Number: LL2146

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Hose Bibcock Size: 1/2" * 3/4" * 3/4"
Brass Material: HPB 57-3 Handle Material: ABS
Handle Type: Lever Stem Type: Double O-ring
Stem Material: Brass Seat Material: PTFE
Body Seal Material: PTFE Working Pressure: 16 Bar(232 Psi)
Opening/closing Test: 10,000 Times Thread: ISO228 (equivalent To DIN 259 And BS2779)
Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
High Light:

HPB 57-3 Hose Bib Cock

,

ISO228 hose bib cock

,

HPB 57-3 Brass Hose Bibcock

Product Description

16 Bar Brass Hose Bibcocks With Flat Lever Handle And Brass Outlet For Washing Machine

  • Description

​Working Pressure   16bar (232 psi)
Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

O-ring: NBR , made of imported raw material, small friction coefficient, long service life and not easy to leak.

Washing machine Outlet: Suitable for all kinds of washing machine pipe, also can be connected to 16 water pipes or direct washing, very convenient.



  • Technical Specification




  1. Full flow brass hose bibcock with Iron flat lever handle.
  2. The thread, color of handle, materials, etc. can be customized.



Dimension mm

1/2" * 3/4" * 3/4"

A

116
B 76
C 39
D 95
PN 16


Materials of Parts


No. Part Materials
1 Body Brass
2

Bonnet

Brass
3 Ball Brass
4 Seal PTFE
5 Stem Brass
6 O ring NBR
7 O ring NBR
8 Handle Iron or steel
9 Nut Stainless Steel




  • Certificates of LL2146

Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock 0Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock 1Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock 2


  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock 3
Washing Machine Brass Outlet HPB 57-3 Hose Bib Cock 4
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
