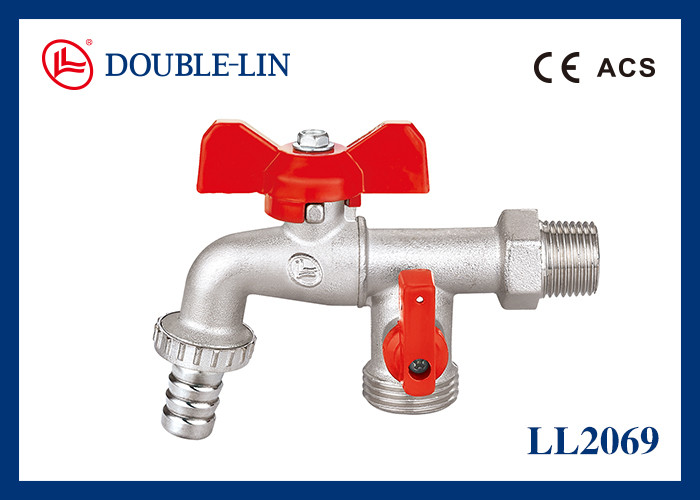

• Washing Machine Double O Ring Stem Brass Bibcocks
Washing Machine Double O Ring Stem Brass Bibcocks

Washing Machine Double O Ring Stem Brass Bibcocks

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: ACS,CE EAC
Model Number: LL2069

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Hose Bibcock Size: 1/2" * 3/4" * 3/4"
Brass Material: HPB 57-3 Handle Material: Aluminium
Handle Type: T Type Stem Type: Double O-ring
Stem Material: Brass Seat Material: PTFE
Body Seal Material: PTFE Working Pressure: 16 Bar(232 Psi)
Opening/closing Test: 10,000 Times Thread: ISO228 (equivalent To DIN 259 And BS2779)
Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
High Light:

16bar Brass Bibcocks

,

232psi Brass Bibcocks

,

ISO228 bib cock valve

Product Description

16 Bar Brass Hose Bibcocks With T Handle And Stainless Steel 304 Outlet For Washing Machine

  • Description

​Working Pressure   16bar (232 psi)
Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Plated with decromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.

O-ring: NBR , made of imported raw material, small friction coefficient, long service life and not easy to leak.

Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.

Water Outlet: Made of stainless steel 304 in good quality, no deformation and rust after long-time use.



  • Technical Specification



 Washing Machine Double O Ring Stem Brass Bibcocks 0

  1. Full flow brass hose bibcock with Iron flat lever handle.
  2. The thread, color of handle, materials, etc. can be customized.



Dimension mm

1/2" * 3/4" * 3/4"

A

116
B 76
C 36
D 54
PN 16


Materials of Parts


No. Part Materials
1 Body Brass
2

Bonnet

Brass
3 Ball Brass
4 Seal PTFE
5 Stem Brass
6 O ring NBR
7 O ring NBR
8 Handle Iron or steel
9 Nut Stainless Steel




  • Certificates of LL2069

Washing Machine Double O Ring Stem Brass Bibcocks 1Washing Machine Double O Ring Stem Brass Bibcocks 2Washing Machine Double O Ring Stem Brass Bibcocks 3


  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

Washing Machine Double O Ring Stem Brass Bibcocks 4
Washing Machine Double O Ring Stem Brass Bibcocks 5
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
