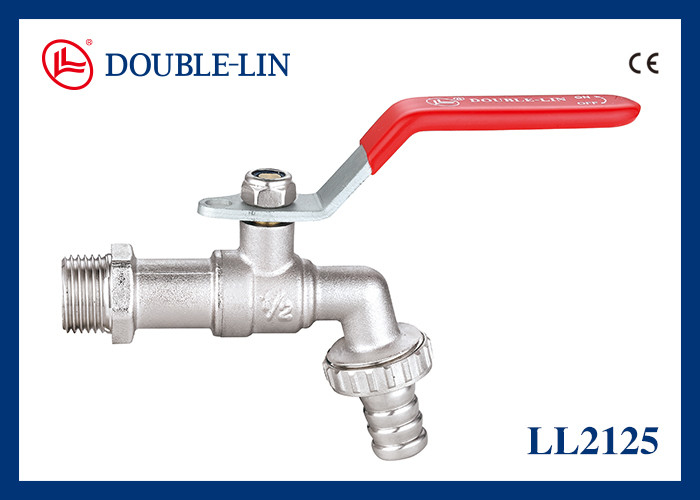

PTFE Seat No Air Holes DIN 259 Brass Bibcocks

PTFE Seat No Air Holes DIN 259 Brass Bibcocks

  • PTFE Seat No Air Holes DIN 259 Brass Bibcocks
PTFE Seat No Air Holes DIN 259 Brass Bibcocks
Product Details:
Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: CE
Model Number: LL2125
Payment & Shipping Terms:
Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Contact Now
Detailed Product Description
Item: Brass Hose Bibcock Size: 1/2" * 3/4"
Brass Material: HPB 57-3 Handle Material: Iron Or Steel
Handle Type: Lever Stem Type: Double O-ring
Stem Material: Brass Seat Material: PTFE
Body Seal Material: PTFE Working Pressure: 16 Bar(232 Psi)
Opening/closing Test: 10,000 Times Thread: ISO228 (equivalent To DIN 259 And BS2779)
Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
High Light:

232 psi Brass Bibcocks

,

DIN 259 Brass Bibcocks

,

BS2779 hose bibcock

16 Bar Brass Hose Bibcocks With Flat Lever Lock Handle And Stainless Steel 304 Outlet

  • Description

​Working Pressure   16bar (232 psi)
Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Plated with decromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.

O-ring: NBR , made of imported raw material, small friction coefficient, long service life and not easy to leak.

Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.

Water Outlet: Made of stainless steel 304 in good quality, no deformation and rust after long-time use.



Technical Features

PTFE Seat No Air Holes DIN 259 Brass Bibcocks 0


  1. Full flow brass hose bibcock with Iron flat lever handle.
  2. The thread, color of handle, materials, etc. can be customized.



SIZE 1/2"
A G1/2"
B 13
C 51
D 95
E 149
F 78.5
G 45.5
H G3/4"
DN 10


Materials of Parts


No. Part Materials
1 Body Brass
2

Bonnet

Brass
3 Ball Brass
4 Seal PTFE
5 Stem Brass
6 O ring NBR
7 O ring NBR
8 Handle Iron or steel
9 Nut Stainless Steel




  • Certificates of LL2125

PTFE Seat No Air Holes DIN 259 Brass Bibcocks 1


  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

PTFE Seat No Air Holes DIN 259 Brass Bibcocks 2
PTFE Seat No Air Holes DIN 259 Brass Bibcocks 3
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
