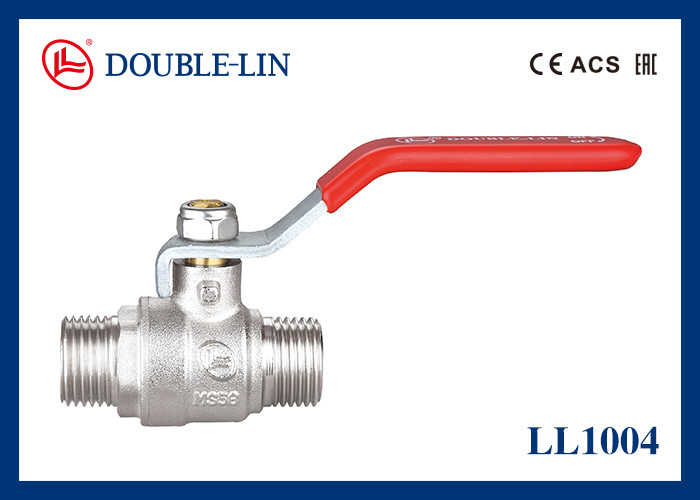

Double O Ring Stem Male X Male 25 Bar Brass Ball Valves

Double O Ring Stem Male X Male 25 Bar Brass Ball Valves

    • Double O Ring Stem Male X Male 25 Bar Brass Ball Valves
  • Double O Ring Stem Male X Male 25 Bar Brass Ball Valves

    Product Details:

    Place of Origin: China
    Brand Name: DOUBLE-LIN
    Certification: ACS,CE EAC
    Model Number: LL1004

    Payment & Shipping Terms:

    Minimum Order Quantity: 0
    Price: 0
    Packaging Details: Double-Lin standard packing
    Delivery Time: within 7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50000 pcs
    Contact Now
    Detailed Product Description
    Item: Brass Ball Valve Size: 1/4" - 1"
    Brass Material: HPB 57-3 Connection Type: Male X Male
    Handle Material: Iron Or Steel Handle Type: Lever
    Stem Type: Double O-ring Stem Material: Brass
    Seat Material: PTFE Body Seal Material: PTFE
    Working Pressure: 25 Bar(362.5 Psi) Opening/closing Test: 10,000 Times
    Thread: ISO228 (equivalent To DIN 259 And BS2779) Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
    High Light:

    25Bar Brass Ball Valves

    ,

    362.5psi Brass Ball Valves

    ,

    HPB 57-3 1 inch brass ball valve

    1/4 " To 1 " Male X Male 25 Bar Brass Ball Valve With Flat Lever Handle


    • Description

    ​Working Pressure   25bar (362.5 psi)
    Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
    Thread ISO228 (equivalent to DIN 259 and BS2779)
    Opening/closing Test 10,000 times

    • Details

    ​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Valve Ball: Smooth and wear resisting, with good sealing performance.

    Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

    Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

    Handle: Plated with dacromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.

    O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

    Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.



    • Technical Specification

    Double O Ring Stem Male X Male 25 Bar Brass Ball Valves 0



    1. Full flow Male x Male brass ball valves with Iron flat lever handle.
    2. The thread, color of handle, materials, etc. can be customized.



    Dimension mm

    1/2"3/4"1"

    A

    59.265.877.5
    B29.535.542.7
    C54.257.660.6
    D9595126
    DN14.81924
    PN252525


    Materials of Parts


    No.PartMaterials
    1BodyBrass
    2

    Bonnet

    Brass
    3BallBrass
    4SealPTFE
    5StemBrass
    6O ringNBR
    7O ringFluorubber
    8HandleIron or steel
    9NutStainless Steel


    Reminding: Ball valves in red handle can be only used in water services, heating and air conditioning plants, and compression air system. They are not allowed to be used in gas system.



    • Certificates of LL1004

    Double O Ring Stem Male X Male 25 Bar Brass Ball Valves 1Double O Ring Stem Male X Male 25 Bar Brass Ball Valves 2Double O Ring Stem Male X Male 25 Bar Brass Ball Valves 3


    • Company Profiles

    Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



    • Our Package Details

    Double O Ring Stem Male X Male 25 Bar Brass Ball Valves 4
    Double O Ring Stem Male X Male 25 Bar Brass Ball Valves 5
    1. Double-Lin logo forged in valve body.
    2. Double-Lin logo stamped or printed on handle.
    3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
    4. Product guarantee certificate
    5. PE plastic ECO bag.
    6. Product spec. label sticked on the side of master carton.
    7. Double-Lin special packing tape.
    8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
    9. 2pcs of non-woven bags inside.
    10. 1 copy of instruction manual inside.



    • FAQ

    Q: How long is your product guarantee period?
    A: We have three-year guarantee and 24 hours full-time service.

    Q: What is your MOQ?
    A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

    Q: Can you accept OEM?
    A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

    Q: How long is your delivery time?
    A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
