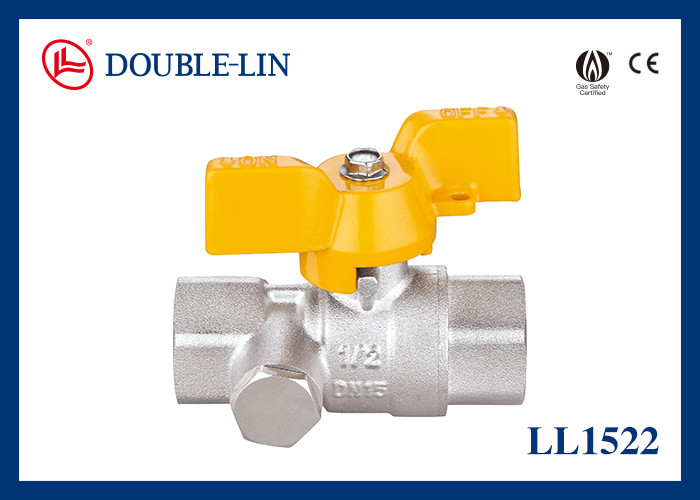

1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve

1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve

    • 1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve
  • 1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve

    Product Details:

    Place of Origin: China
    Brand Name: Double-Lin
    Certification: CE
    Model Number: LL1522

    Payment & Shipping Terms:

    Minimum Order Quantity: 0
    Price: 0
    Packaging Details: Double-Lin standard packing
    Delivery Time: within 7 days
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 50,000 pcs
    Contact Now
    Detailed Product Description
    Item: Gas Ball Valve Size: 1/2"-1"
    Brass Material: Hpb 57-3 Connection Type: Female X Female Long Threads
    Handle Material: Aluminium Handle Type: T/Butterfly
    Stem Type: Double O-ring Stem Material: Brass
    Seal Material: PTFE Working Pressure: 5 Bar (72.5 Psi)
    Opening/closing Test: 10,000 Times Thread: ISO228(equivalent To DIN259 And BS2779)
    Working Temperature: -10 ℃-80 ℃ (14℉-176℉)
    High Light:

    DIN259 t handle gas valve

    ,

    ISO228 t handle gas valve

    ,

    DIN259 brass gas ball valve

    1/2 " to 1 " Female x Female Long Threads 72.5 psi Brass Gas Ball Valve





    Description


    Working Pressure 5bar (72.5 psi)

    Working Temperature from -10 ℃ to +80 ℃ (from 14℉ to 176℉)

    Thread ISO228(equivalent to DIN259 and BS2779)

    Opening/closing Test 10,000 times





    Details

    ​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

    Valve Ball: Smooth and wear resisting, with good sealing performance.

    Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

    Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

    Handle: The butterfly handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.

    O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

    Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.



    Technical Specification



    1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve 0



    1. Female x Female Long Threads Brass Gas Ball Valves with Aluminium T handle.
    2. The thread, color of handle, materials, etc. can be customized.
    Dimension mm 1/2" 3/4" 1"
    A 66.4 75.5 85.5
    B 29.5 35.6 42.7
    C 43.5 48.5 52.5
    D 60 60 60
    E 14.8 19 24
    PN 5 5 5



    Materials of Parts



    No. Part Materials
    1 Body Brass
    2 Bonnet Brass
    3 Ball Brass
    4 Seal PTFE
    5 Stem Brass
    6 O ring NBR
    7 Handle Aluminium
    8 Nut Stainless Steel



    Reminding: Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.



    Certificates of LL1522





    1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve 1



    Company Profiles



    Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



    Our Package Details



    1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve 2

    1/2" Female X Female 5 Bar DIN259 T Handle Gas Valve 3

    1. Double-Lin logo forged in valve body.

    2. Double-Lin logo stamped or printed on handle.

    3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

    4. Product guarantee certificate

    5. PE plastic ECO bag.

    6. Product spec. label sticked on the side of master carton.

    7. Double-Lin special packing tape.

    8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.

    9. 2pcs of non-woven bags inside.

    10. 1 copy of instruction manual inside.
