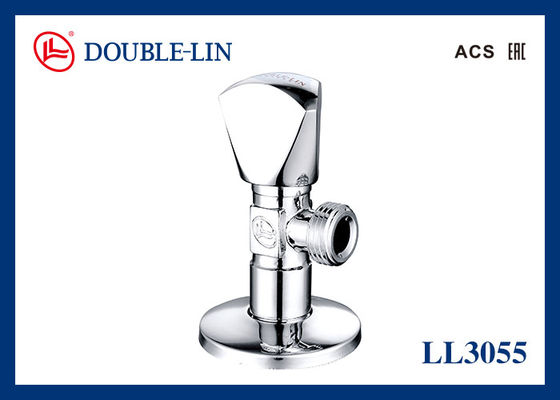

• ISO228 One Way Angle Valve
ISO228 One Way Angle Valve

ISO228 One Way Angle Valve

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: ACS, EAC
Model Number: LL3055

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Angle Valve Size: 1/2" * 3/8", 1/2" * 1/2", 1/2" * 3/4"
Brass Material: HPB 57-3 Handle Material: Zinc Alloy
Handle Type: Triangle Type Stem Material: Brass
Seat Material: PTFE Working Pressure: 10 Bar(145 Psi)
Thread: ISO228 (equivalent To DIN 259 And BS2779) Working Temperature: From 0 ℃ To +80 ℃ (from 32℉ To 176℉)
High Light:

ISO228 one way angle valve

,

HPB 57-3 one way angle valve

,

ISO228 threaded angle stop

Product Description

10 Bar Brass Angle Valve Polished Chromed-Plated With Zinc Alloy Handle / Single Way Brass Angle Valve

  • Description

​Working Pressure   10bar (145 psi)
Working Temperature  from 0 ℃ to +80 ℃ (from 32℉ to 176℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)


  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Surface: Professionally polished and chrome plated, with nine-level electroplating standards. The surface is as smooth as a mirror, and can be used for long time.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Internal: High-precision machining, smooth and non-scalling, is not easy to block, and make the service life longer.

Handle: Made by zinc alloy is exquisite in appearance and unique in structure, which conforms to the human body ergonomics and is long time to use.

Water Inlet: High-precision thread processing, perfect docking with water inlet pipe, silky smooth.

Cover: Made of stainless steel, antirust, long-term use of the suface is still as new.



  • Technical Specification


ISO228 One Way Angle Valve 0



Dimension mm

1/2" * 3/8" 1/2" * 1/2" 1/2"  * 3/4"

A

96.5 96.5 96.5
B 8.5 8.5 8.5
C 51.5 51.5 51.5
PN 10 10 10


Materials of Parts


No. Part Materials
1 Body Brass
2

Bonnet

Brass
3 Stem Brass
4 Seal Brass
5 Seal Gasket NBR
6 O ring NBR
7 Connector Plastic
8 Handle Wheel Zinc Alloy
9 Cover Stainless Steel 304




  • Certificates of LL3055

ISO228 One Way Angle Valve 1ISO228 One Way Angle Valve 2


  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

ISO228 One Way Angle Valve 3
ISO228 One Way Angle Valve 4
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
