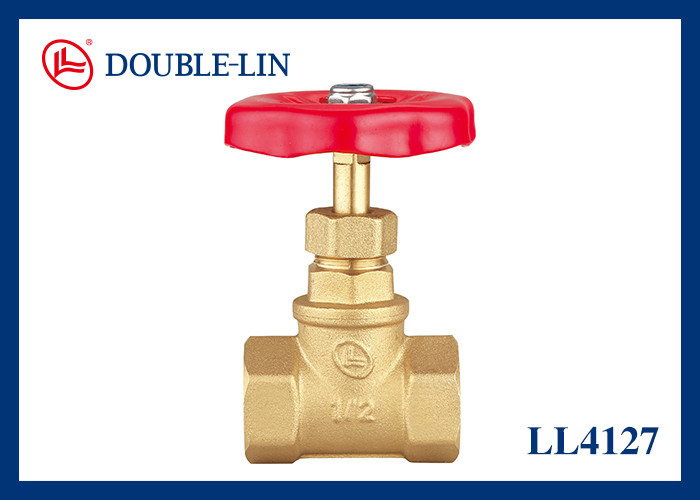

No Leakage Female X Female 1/2" Brass Gate Valves
Product Details:
| Place of Origin: | China |
| Brand Name: | DOUBLE-LIN |
| Certification: | ACS, EAC |
| Model Number: | LL4127 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 0 |
|---|---|
| Price: | 0 |
| Packaging Details: | Double-Lin standard packing |
| Delivery Time: | within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pcs |
|
Detail Information |
|||
| Item: | Brass Stop Valve | Size: | 1/2" - 2" |
|---|---|---|---|
| Brass Material: | HPb 57-3 | Connection Type: | Female X Female |
| Handle Material: | Steel Handle | Filler Material: | PTFE |
| Nut: | Stainless Steel | Working Pressure: | 16 Bar(232 Psi) |
| Thread: | ISO228 (equivalent To DIN 259 And BS2779) | Working Temperature: | From -10 ℃ To +120 ℃ (from 14℉ To 248℉) |
| High Light: | ACS Brass Gate Valves,EAC Brass Gate Valves,ACS 2" gate valve |
||
Product Description
1/2 " To 2 " 16 Bar Brass Stope Valve With Steel Handle
- Description
Working Pressure 16bar (232 psi)
Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
- Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Bonnet: Made of brass material in good quality to ensure wall thickness and is quite durable.
Brass Valve Spool: Adapt soft seal, PTFE seat with good sealing performance, can be suitable for different environments.
Filler: Made of PTFE in good quality, with excellent sealing performance to prevent leakage.
Hexagaonal Nut: Made of brass material in good quality, with strong tensile strength, good toughness and without deformation and cracking after long-time use.
Handle: Made of steel in good quality, surface painting, not easy to oxidize and rot. Novel apperance and confortable using feeling.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
- Materials of Parts
| No. | Part | Materials |
| 1 | Body | Brass |
| 2 | Filler | PTFE |
| 3 | Bonnet | Brass |
| 4 | Lock Cap | Brass |
| 5 | Spool | Brass |
| 6 | Handle | Steel |
| 7 | Nut | Stainless Steel |
