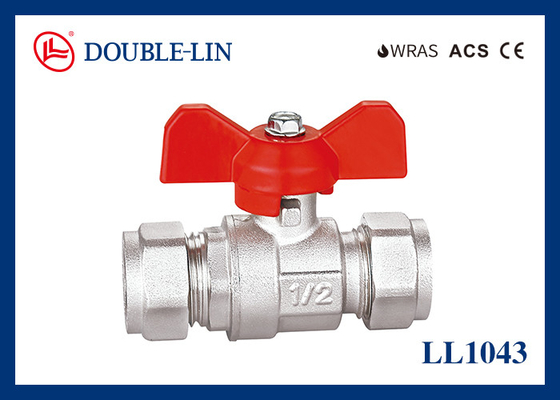

• Pipe Connection T Handle PN25 Brass Ball Valves
Pipe Connection T Handle PN25 Brass Ball Valves

Pipe Connection T Handle PN25 Brass Ball Valves

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: CE,ACS,EAC
Model Number: LL1043

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Ball Valve Size: 15,22,28
Brass Material: HPB 57-3 Connection Type: Pipe Connection
Handle Material: Aluminium Alloy Handle Type: T Handle
Stem Type: Double O-ring Stem Material: Brass
Seat Material: PTFE Body Seal Material: PTFE
Working Pressure: 25 Bar(362.5 Psi) Opening/closing Test: 10,000 Times
Thread: ISO228 (equivalent To DIN 259 And BS2779) Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
High Light:

PN25 Brass Ball Valves

,

HPB 57-3 Brass Ball Valves

,

PN25 15mm brass ball valve

Product Description

25 Bar Brass Ball Valve With Pipe Connection With T Handle


  • Description

​Working Pressure   25bar (362.5 psi)
Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

Handle: Aluminium alloy T handle, professional surface painting, wear resisting, anti-corrosion. Small appearance, flexible in open and close.

O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.



  • Technical Specification

Pipe Connection T Handle PN25 Brass Ball Valves 0

  1. Full flow Male x Female brass ball valves with revolve nut with T handle.
  2. The thread, color of handle, materials, etc. can be customized.



Dimension mm

152228

A

646883
B152228
C374252.5
D546067
E13.51724
PN252525


Materials of Parts


No.PartMaterials
1BodyBrass
2

Bonnet

Brass
3BallBrass
4SealPTFE
5StemBrass
6O ringNBR
7O ringFluorubber
8HandleAluminium Alloy
9NutStainless Steel


Reminding: Ball valves in red handle can be only used in water services, heating and air conditioning plants, and compression air system. They are not allowed to be used in gas system.



  • Certificates of LL1043

Pipe Connection T Handle PN25 Brass Ball Valves 1Pipe Connection T Handle PN25 Brass Ball Valves 2Pipe Connection T Handle PN25 Brass Ball Valves 3

  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

Pipe Connection T Handle PN25 Brass Ball Valves 4
Pipe Connection T Handle PN25 Brass Ball Valves 5
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
