• Slow Open Aluminium Handle Forging Brass Hose Bibcock

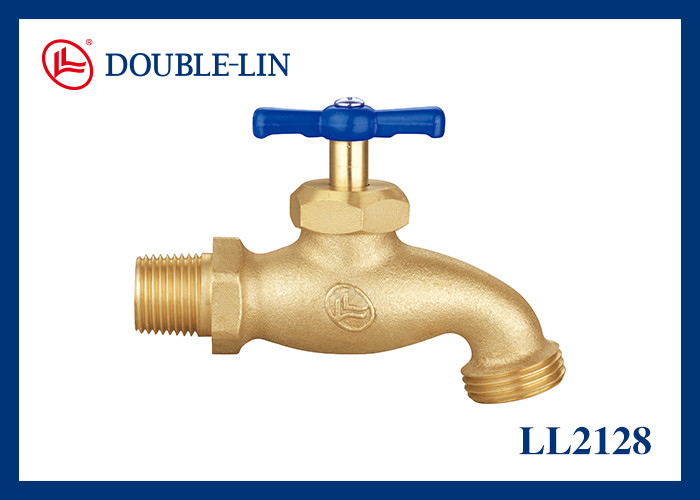

Slow Open Aluminium Handle Forging Brass Hose Bibcock

Slow Open Aluminium Handle Forging Brass Hose Bibcock

Product Details:

Place of Origin: China
Brand Name: DOUBLE-LIN
Certification: CE, ACS,
Model Number: LL2128

Payment & Shipping Terms:

Minimum Order Quantity: 0
Price: 0
Packaging Details: Double-Lin standard packing
Delivery Time: within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs
Get Best Price Contact Now

Detail Information

Item: Brass Stop Bibcock Size: 1/2" * 3/4", 3/4" * 3/4"
Brass Material: HPB 57-3 Handle Material: Aluminium
Stem Type: Slow Open Cartridge Stem Material: Brass
Body Seal Material: EPDM Working Pressure: 16 Bar(232 Psi)
Opening/closing Test: 10,000 Times Thread: ISO228 (equivalent To DIN 259 And BS2779)
Working Temperature: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
High Light:

ACS brass hose bib

,

ISO228 brass hose bibcock

,

ACS brass hose bibcock

Product Description

Simple Cold Brass Stop Bibcock, Forging, Brass Colour, Slow Open Aluminium Handle

  • Description

​Working Pressure   16bar (232 psi)
Working Temperature  from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times

  • Details

  •



​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Professional surface: Polishing chrome plating, grade 9 electroplating standard.The surface is as smooth as a mirror.

valve stem: Processed by hot-rolled copper bar, which has strong hardness and can effectively prevent deformation and fracture when the valve is switched.

Spool: Made of high grade brass with smooth surface and good sealing performance.

Handle: The handle is well designed, ergonomic, good to hold and easy to open.

Seal ring: Imported EPDM seal ring and spool double seal prevent leakage





 Technical Features

 Slow Open Aluminium Handle Forging Brass Hose Bibcock 0



SIZE 1/2 * 3/4 3/4 * 3/4
A NPT 1/2 NPT 3/4
B 16.5 19.5
C 48.5 48.5
D 59 59
E 83 83
F NH3/4-11.5 NH3/4-11.5
G 9 9
H 100 100
PN 12 12


Materials of Parts


No. Part Materials
1 Body Brass
3 Ball Brass
4 Seal EPDM
5 Spool Brass
6 Stem Brass
7 Handle Aluminium


 Certificates of LL2128



Slow Open Aluminium Handle Forging Brass Hose Bibcock 1Slow Open Aluminium Handle Forging Brass Hose Bibcock 2



  • Company Profiles

Double-Lin, which was established in 2000 in China, is a manufacturing company for global market. Double-Lin products with self-owned brand are widely distributed to more than 100 countries and regions, and Chinese domestic market. Chairman Mr. Lin Hailin adopts strategic adjustment of industrial layout, the business scope is integrated into a comprehensive solution provider, including four major areas such as public buildings and household water control system, public buildings and home heating system, transportation and use of gas safety system, family bathroom hardware solutions, covering nearly 10,000 kinds of products and specifications.



  • Our Package Details

Slow Open Aluminium Handle Forging Brass Hose Bibcock 3
Slow Open Aluminium Handle Forging Brass Hose Bibcock 4
1. Double-Lin logo forged in valve body.
2. Double-Lin logo stamped or printed on handle.
3. Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
4. Product guarantee certificate
5. PE plastic ECO bag.
6. Product spec. label sticked on the side of master carton.
7. Double-Lin special packing tape.
8. Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
9. 2pcs of non-woven bags inside.
10. 1 copy of instruction manual inside.



  • FAQ

Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.

Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".

Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.

Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
